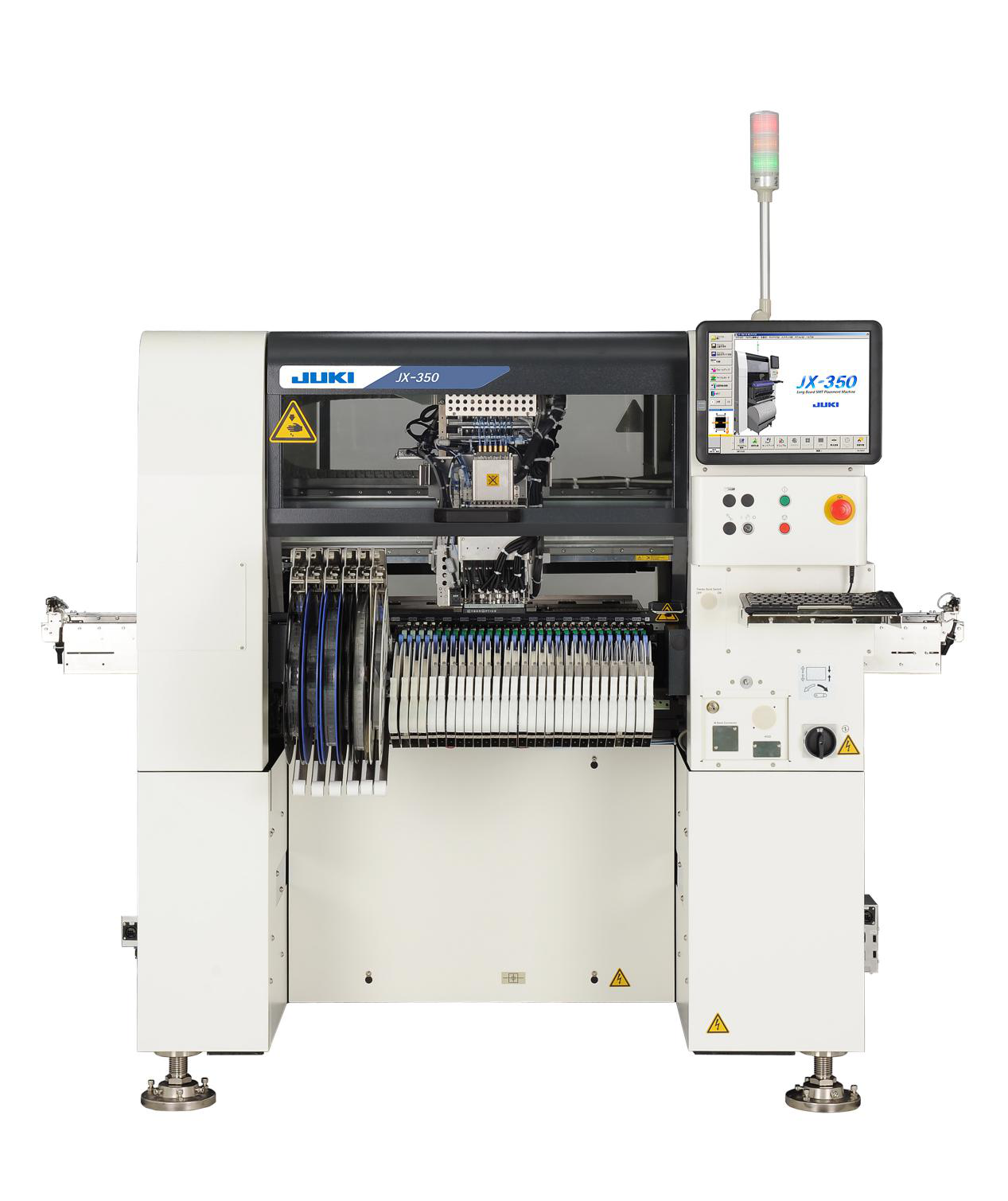

JX350
JX350
l Chip
32,000CPH chip (Laser centering/Optimum)
21,000CPH chip (Laser centering / IPC9850)
l From 0603 to □33.5mmsquare components
l JUKI laser centering for high speed, high accuracy placement
l Improved placement quality
l Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.
l High-precision placement of diffusion lenses
l Capable of up to 1,500 mm long board production, top class board size in industry.*
l Various supply methods *
*option
